Intel SYP301
System
| Company: | Intel |
| Bus: | ISA |
| Introduction: | 1987 |
| Maximum memory size: | 16.5MB |
| Maximum number of CPUs: | 1 |
| uses architecture: | IA32 (Intel Architecture 32-bit) |
| can contain: | Intel 80386 |
| System class: | Desktop |
| Contains: | Intel 80386 |

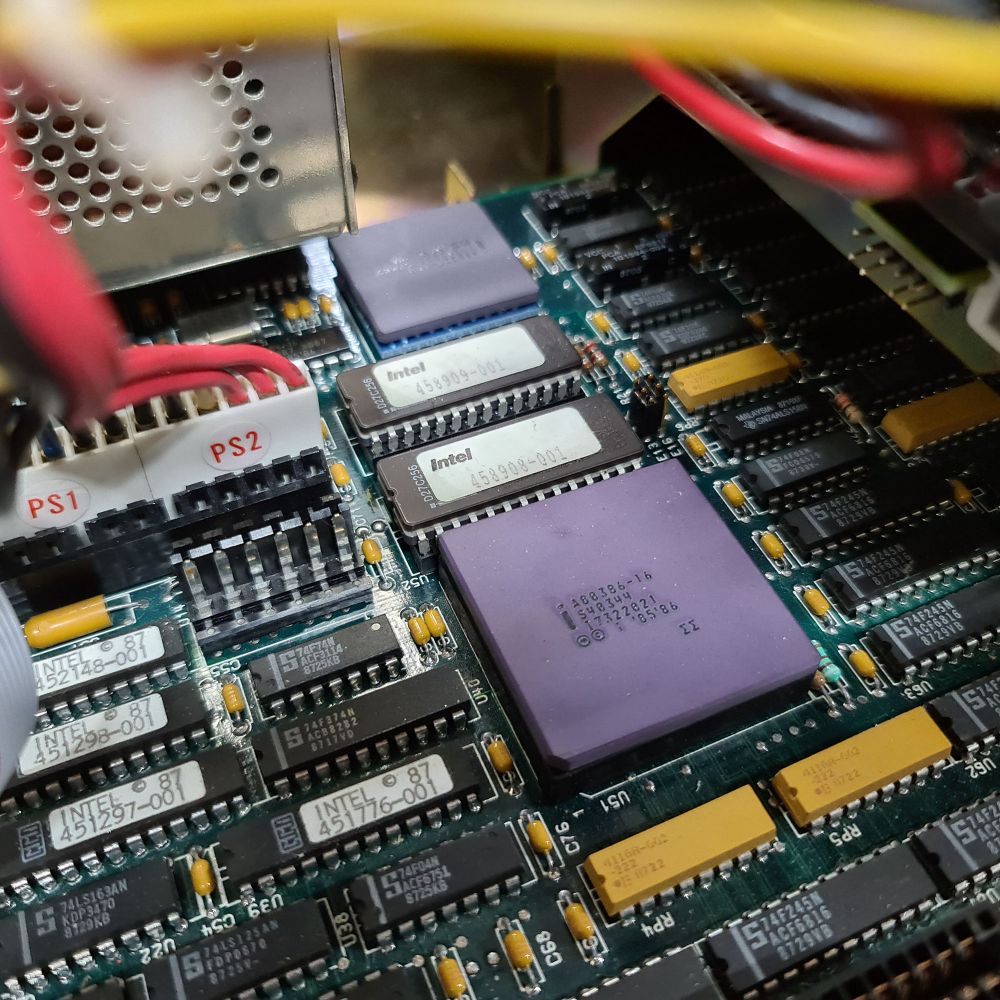

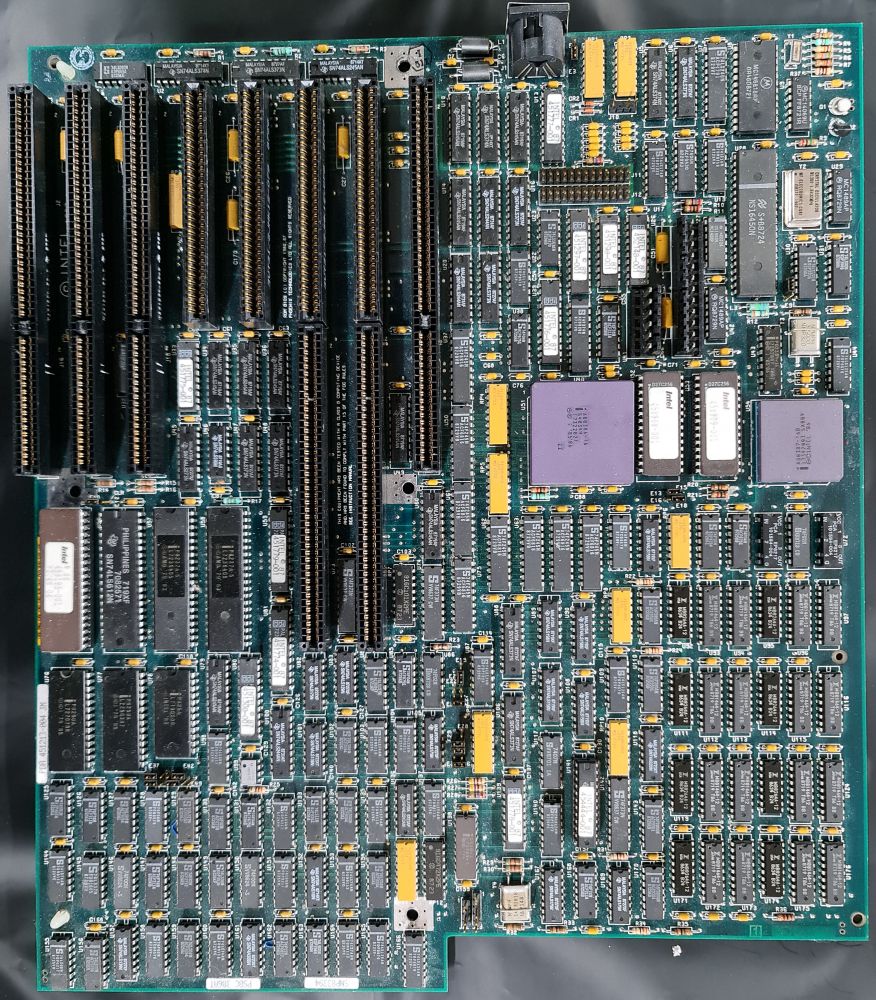

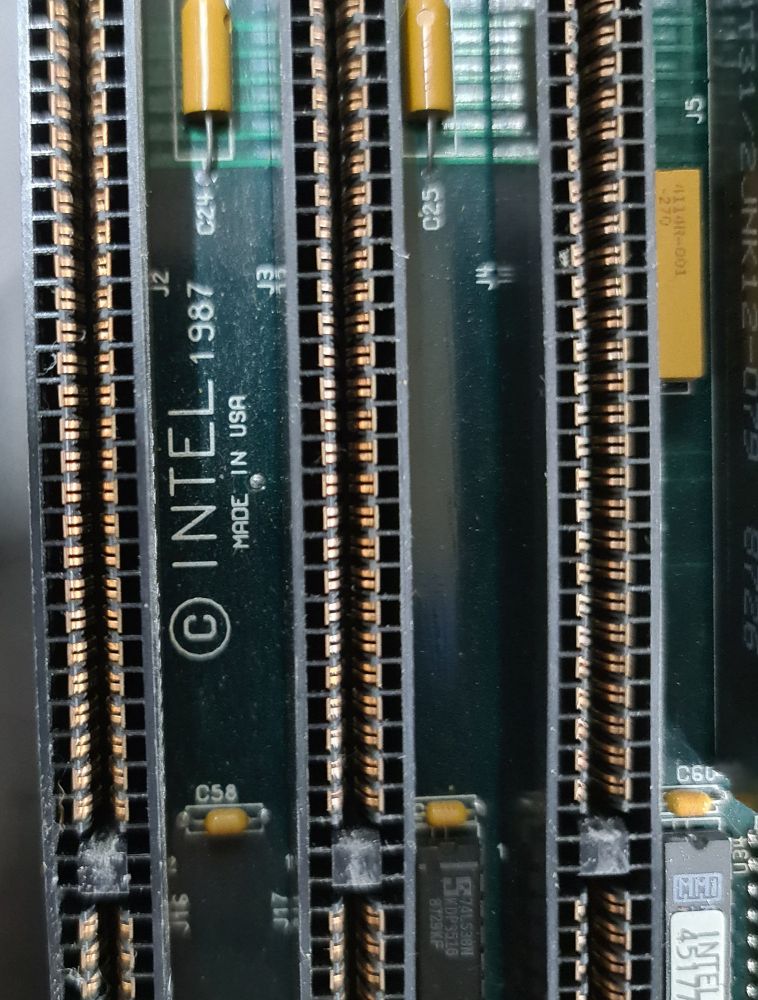

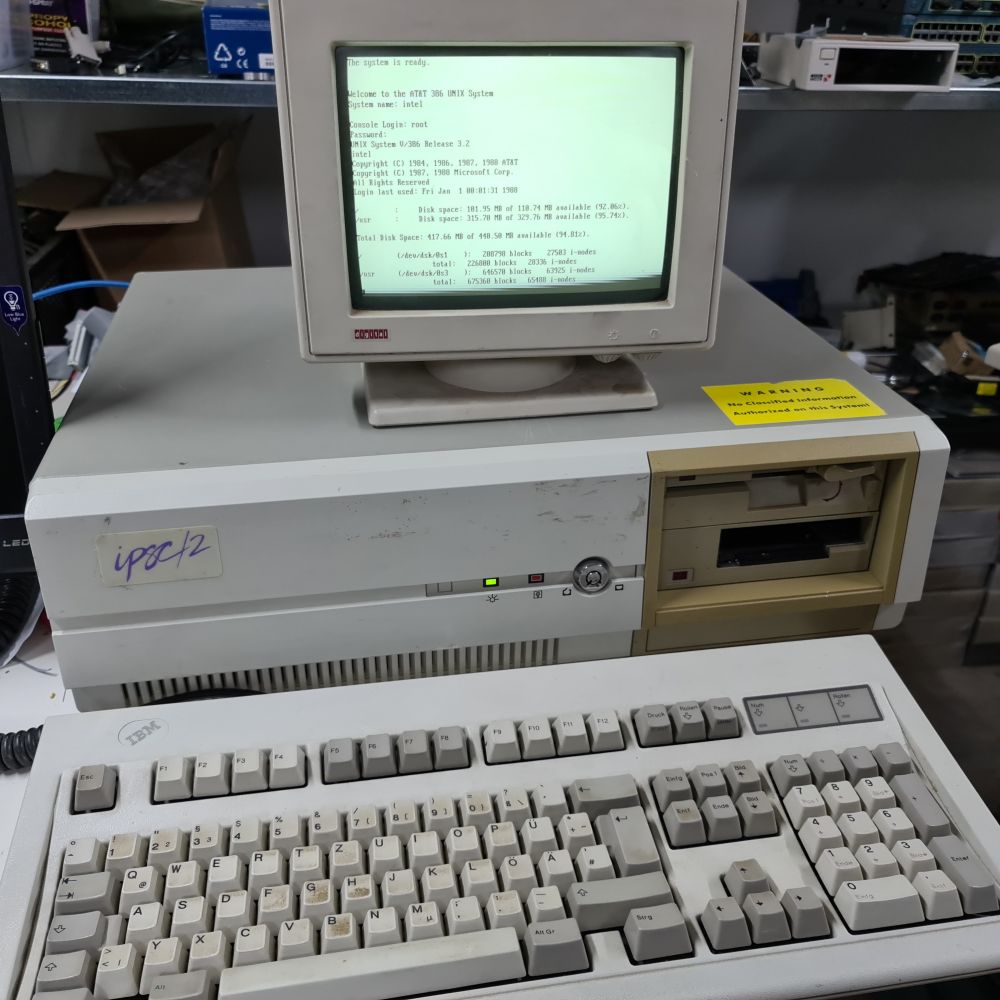

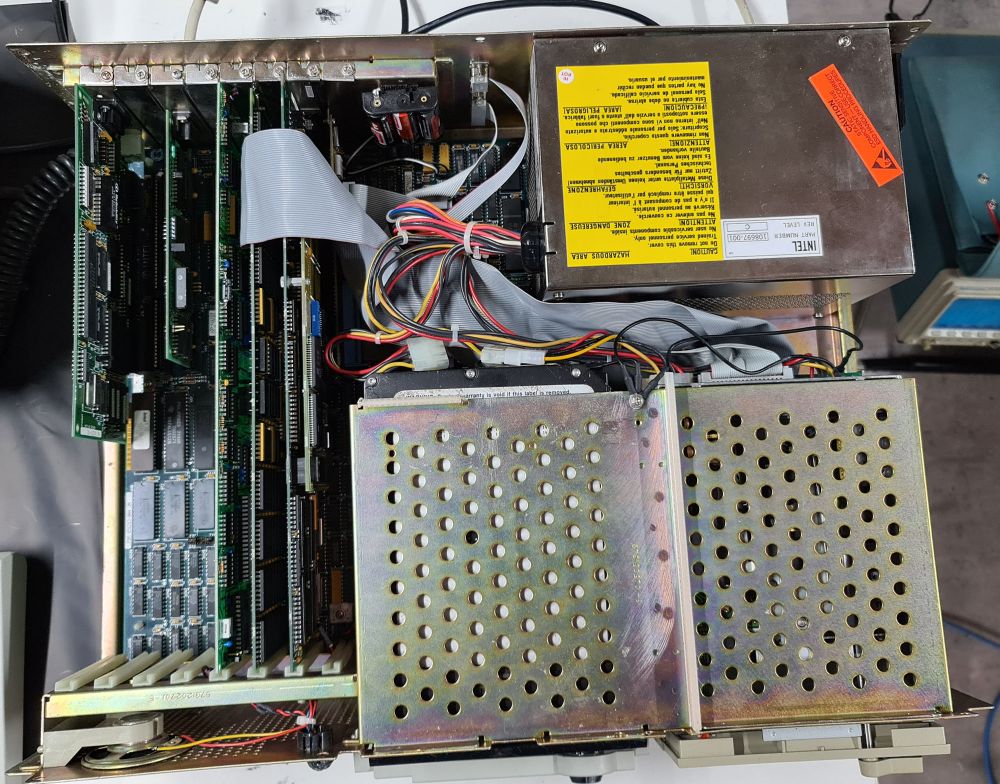

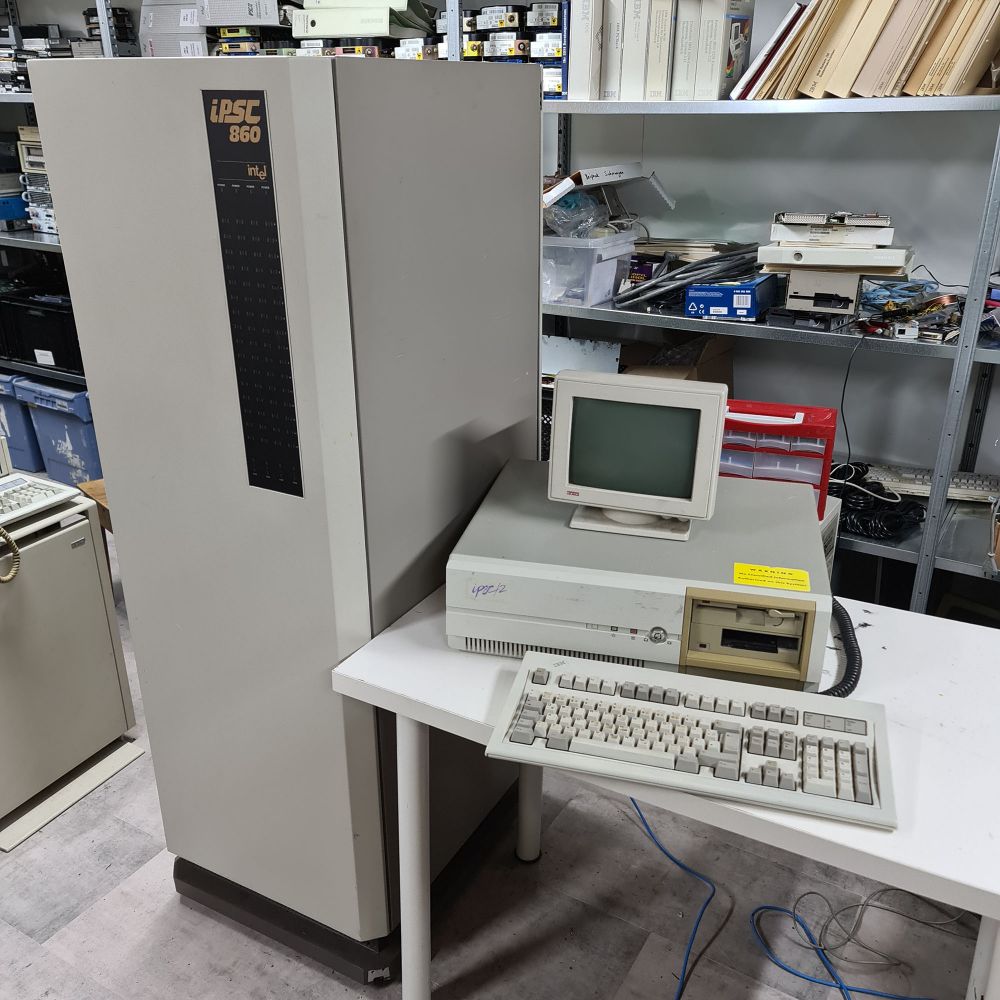

This desktop system was built by Intel around their iSBC386AT main board, possibly the first AT-compatible 386 main board produced. This machine is the SRM (Systems Resource Manager) for the Intel iPSC/860.

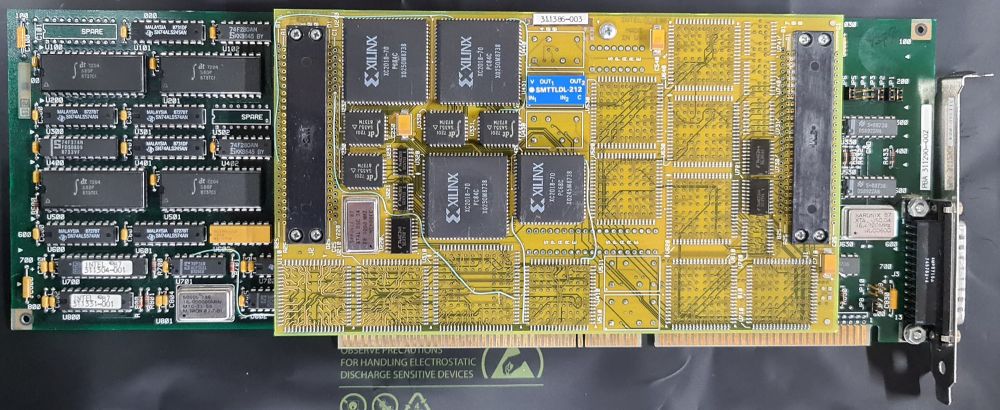

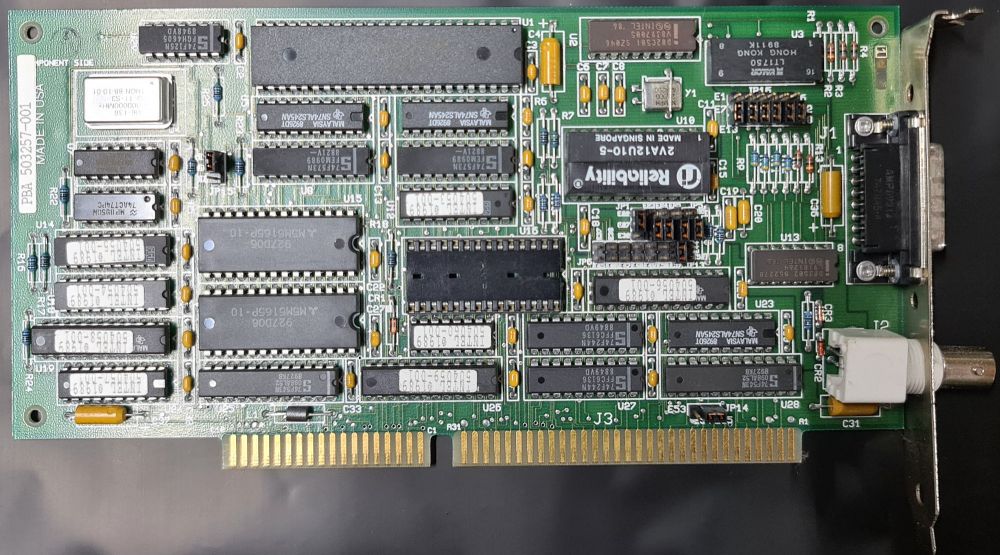

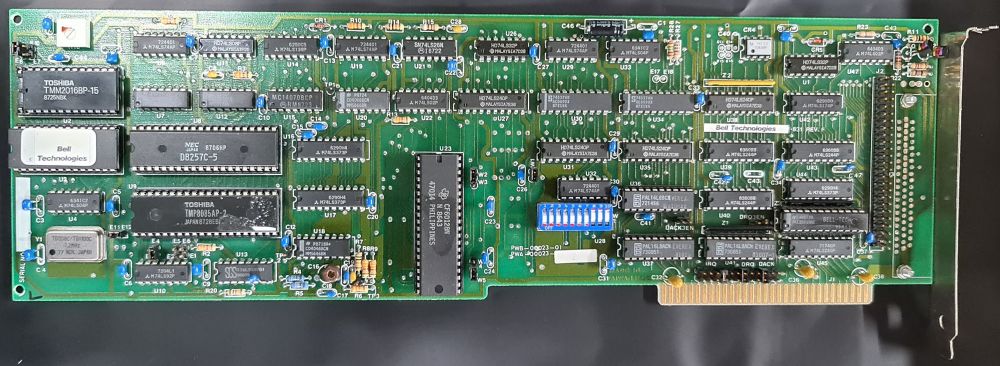

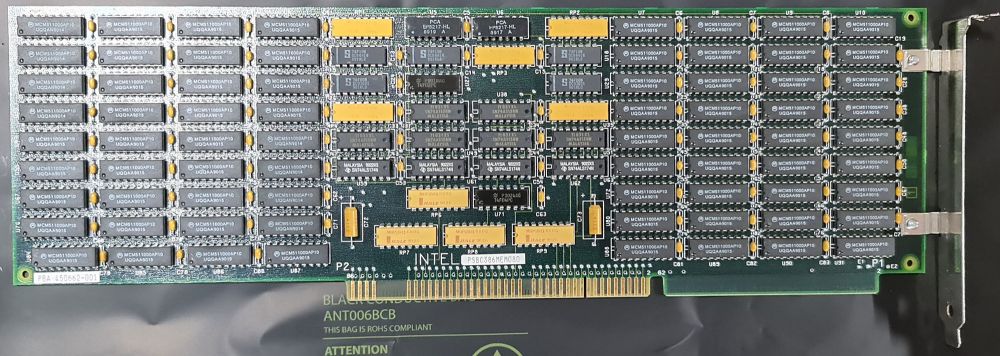

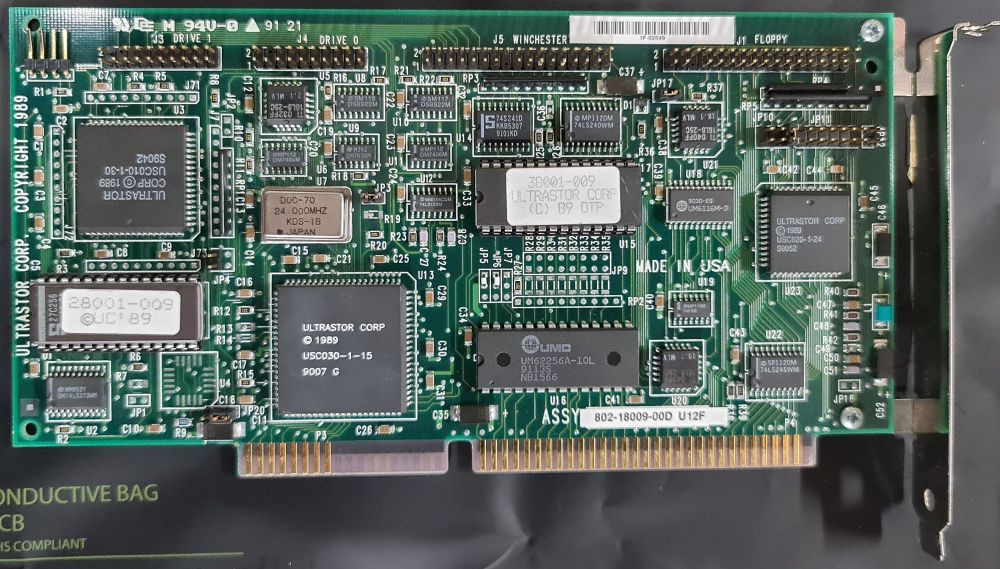

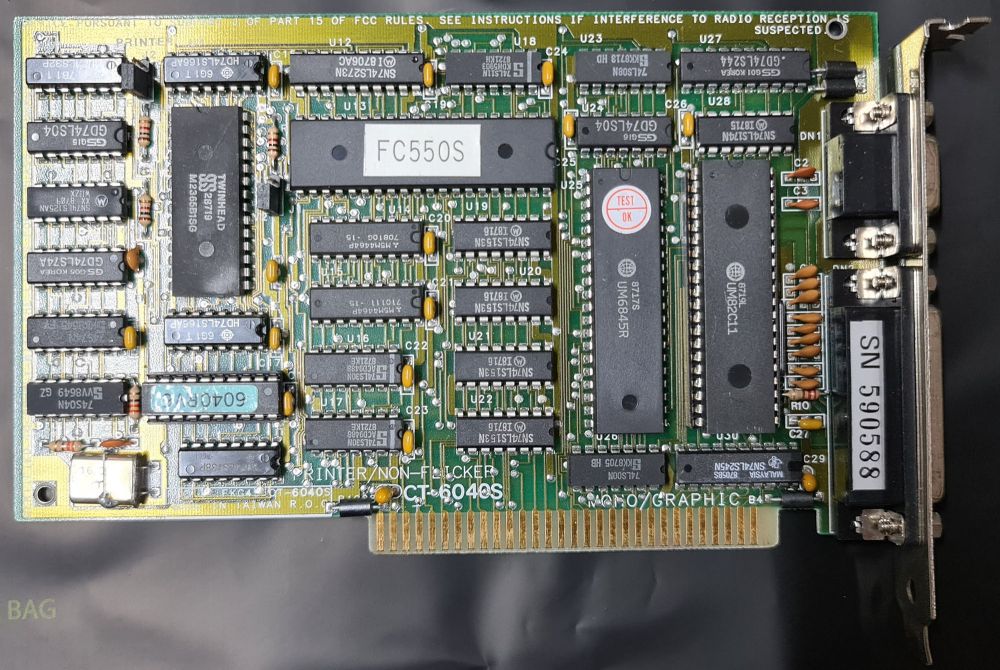

ISA cards in the system: Intel PC586 ethernet, monochrome graphics, Bell XTC tape controller, 8MB memory expansion, DCM (Direct Connect Module) to connect to the Hypercube, Ultrastor 12F ESDI controller
See also:
Intel iPSC/860
Getting an SRM for the Intel iPSC/860
SRM for the iPSC/860 boots!
