TEP FTI990
System
| Company: | TEP (TEP Elektronik) |
| Introduction: | 1980 |
| Maximum memory size: | 64KB |
| Maximum number of CPUs: | 1 |
| uses architecture: | TMS9900 |
| runs os: | Eyring PDOS |
| can contain: | TI TMS9900 |
| System class: | Industrial |
| Contains: | TI TMS9900 |

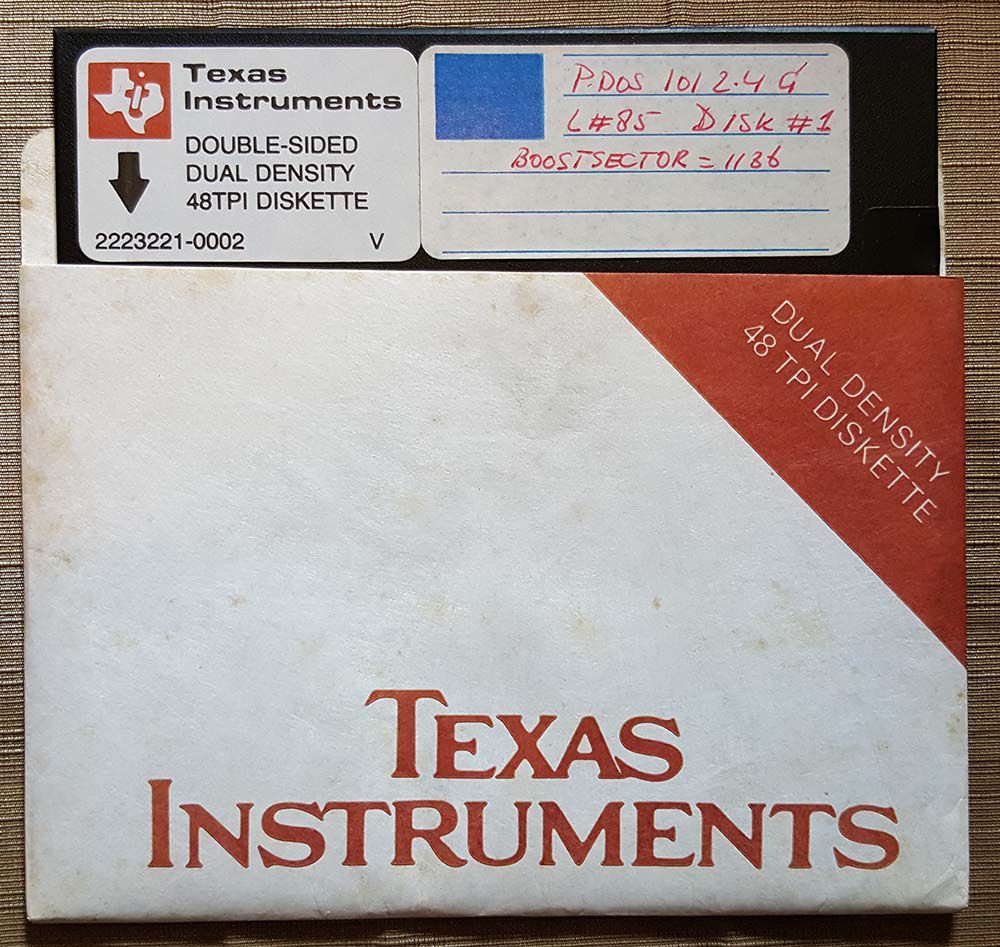

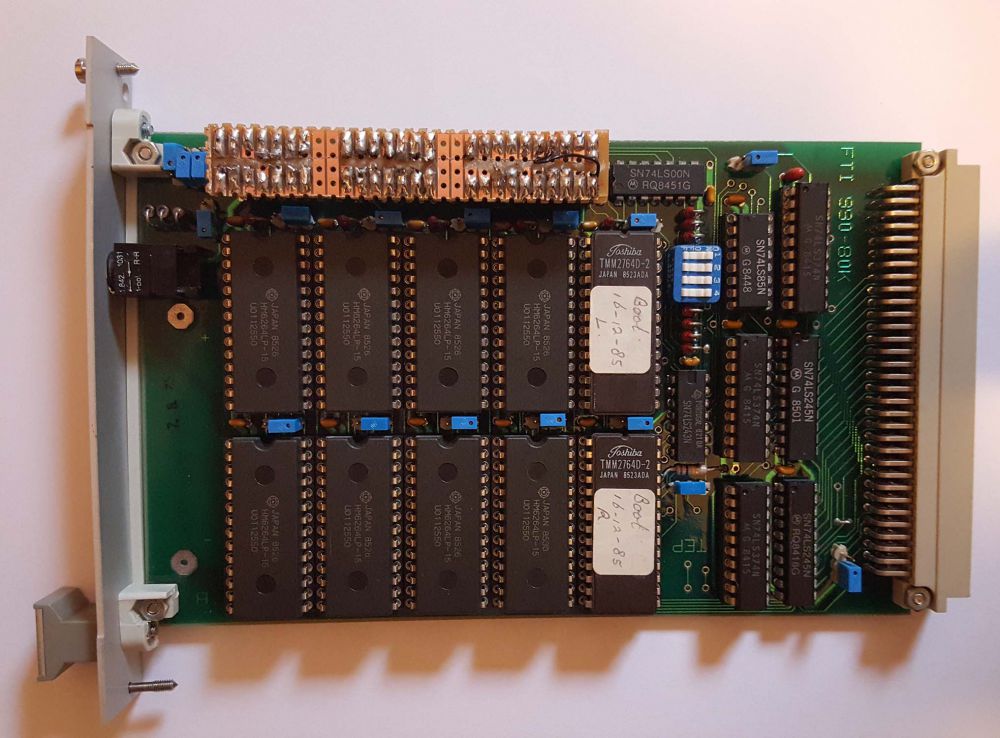

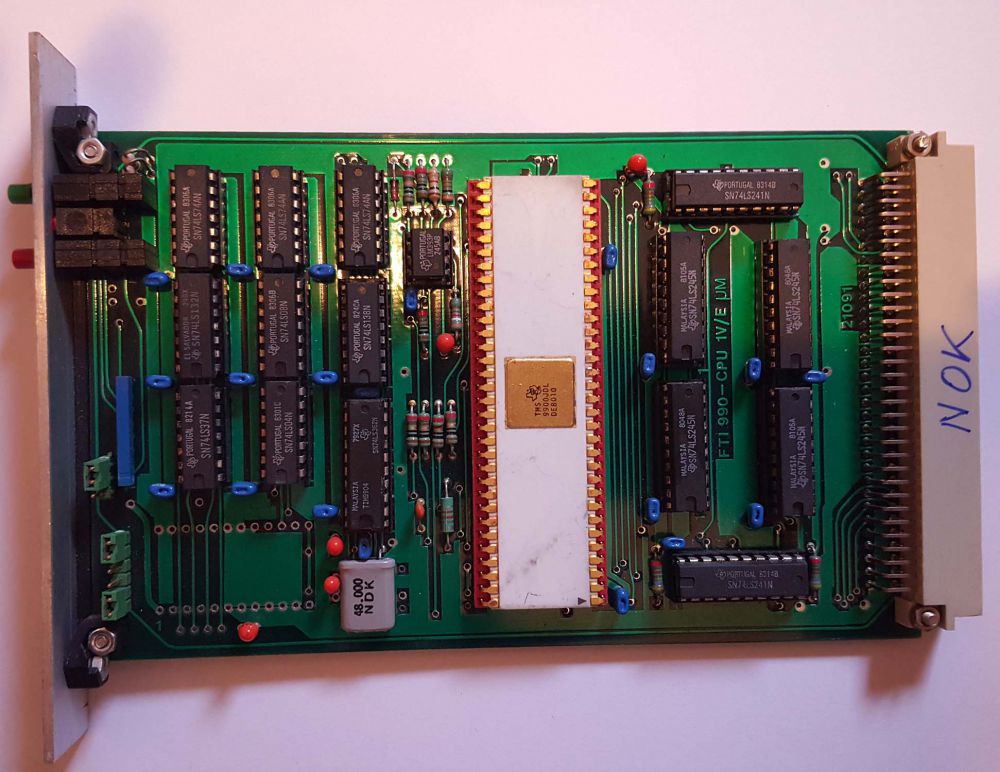

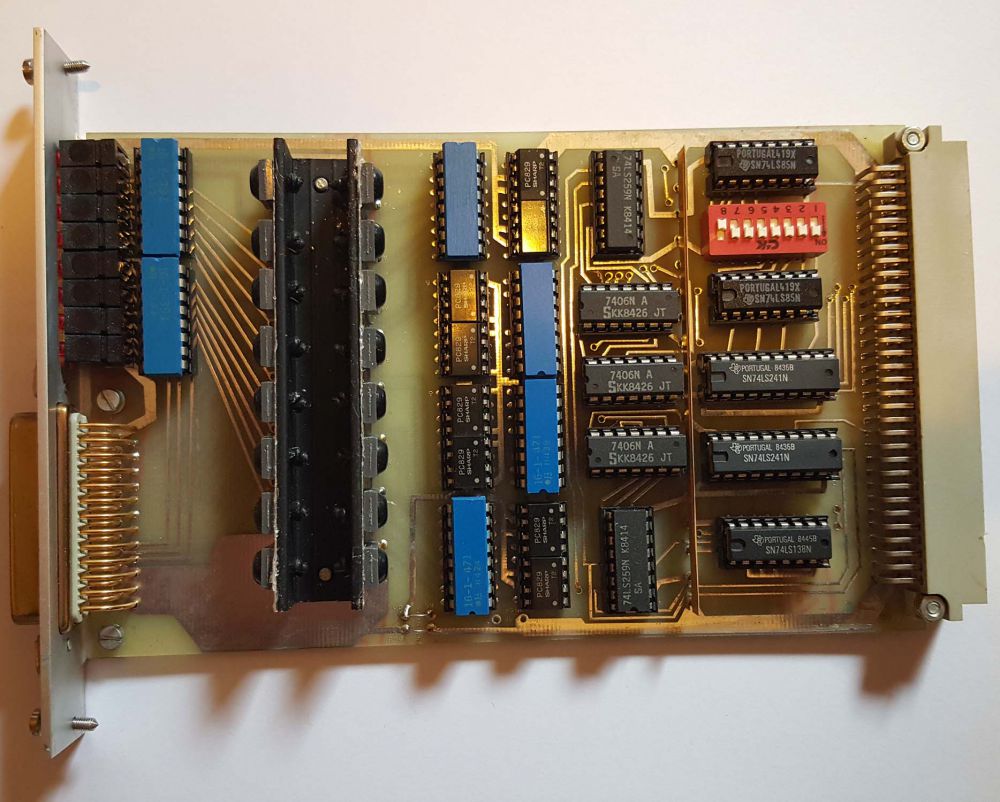

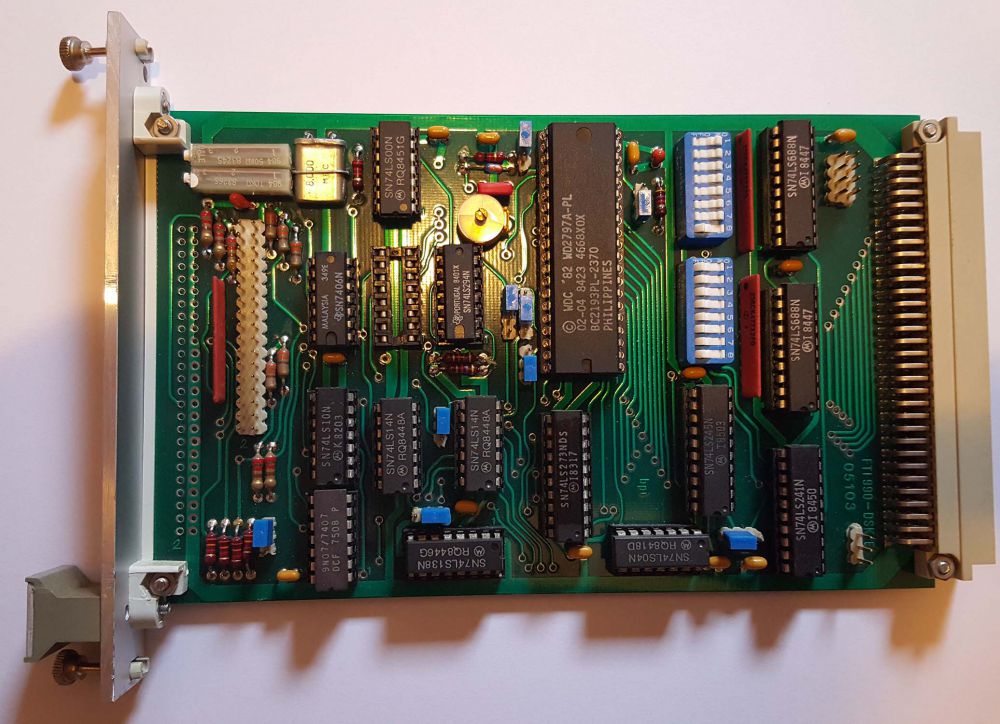

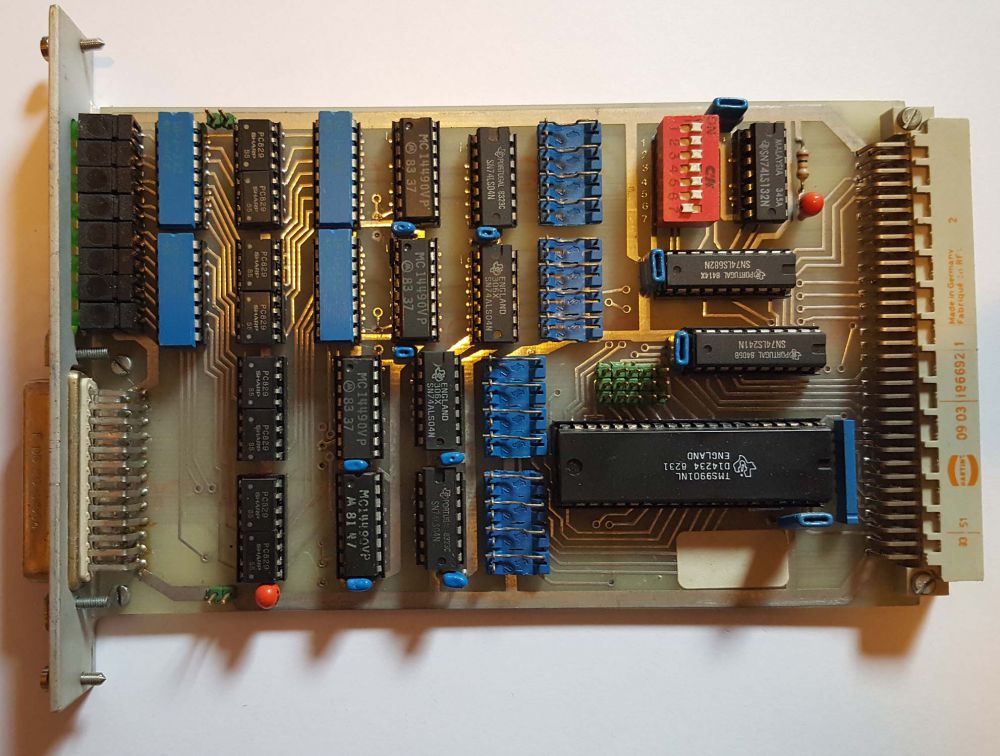

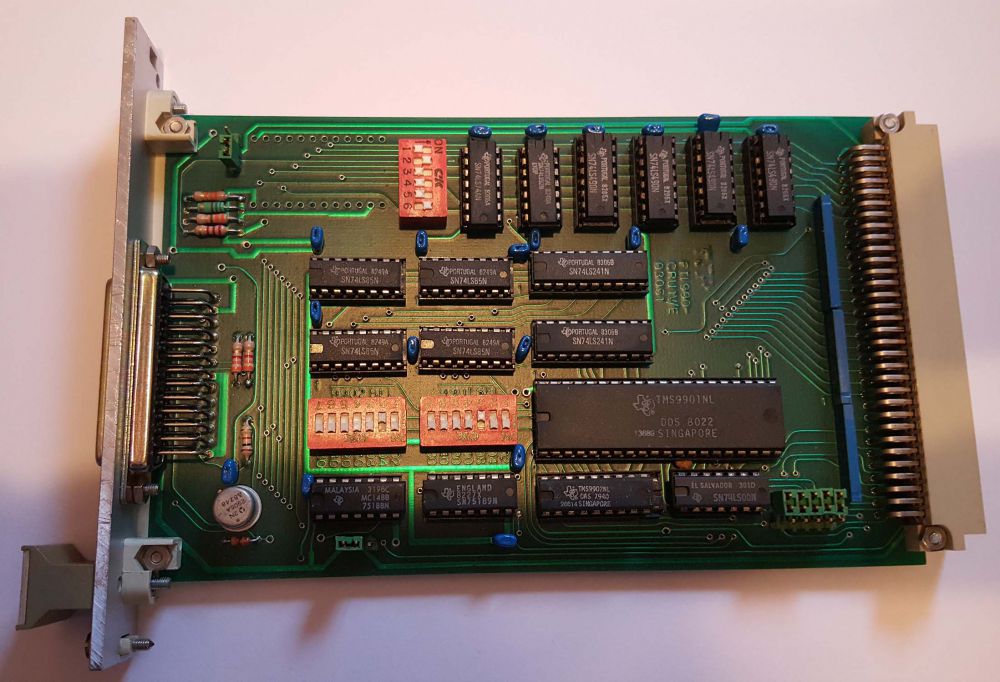

The TEP FTI990 is a rack-mounted system, consisting of several eurocards. Manufactured by TEP Elektronik Betriebs GmbH in Hambrug Germany in 1980. It consists of a CPU card (FTI990-CPU 1V/E) with a Texas Instruments TMS9900 CPU, two CRU cards (serial and parallel I/O, using a TMS9901 and a TMS9902), a digital 16-channel input card, a disigtal 16-channel output card, a memory card with 64 KB RAM (of which 56 KB is used) and 16 KB EPROM (of which 4 KB is used), and a floppy disk controller with two 5-1/4" DS/DD floppy drives (Philips X3114)

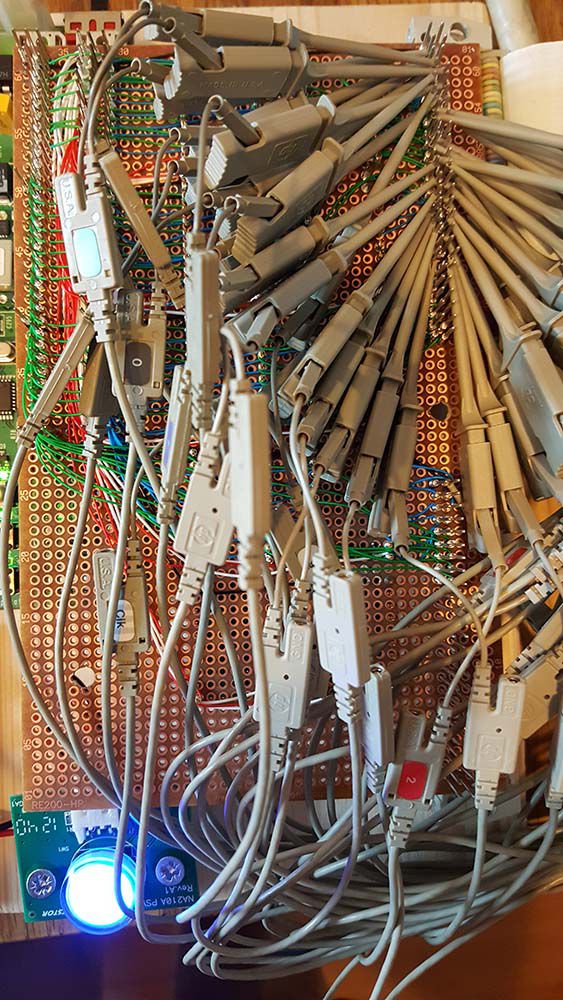

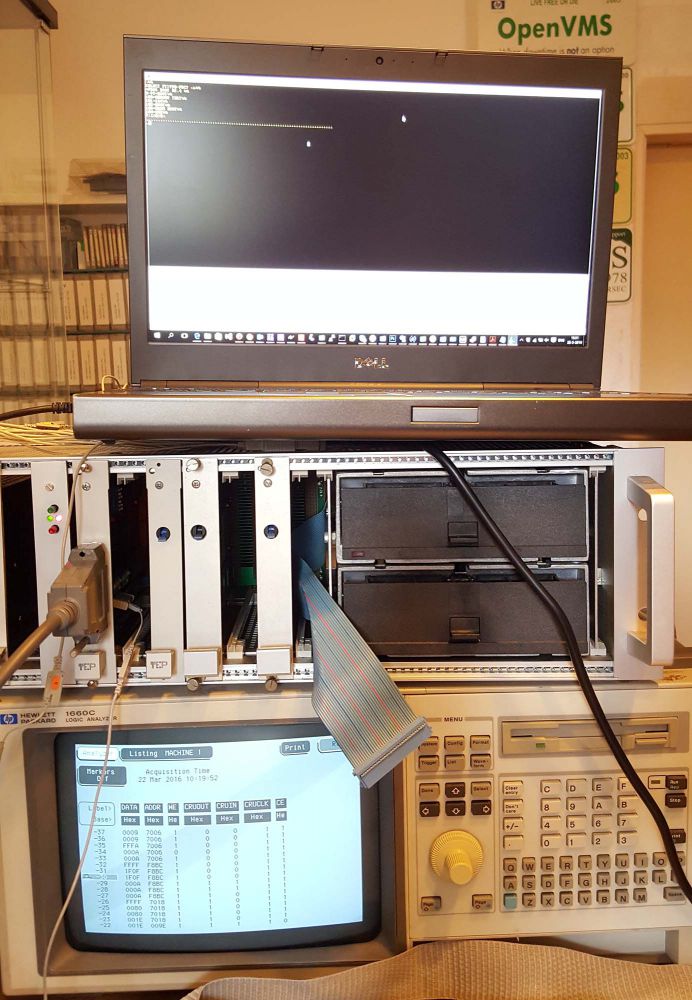

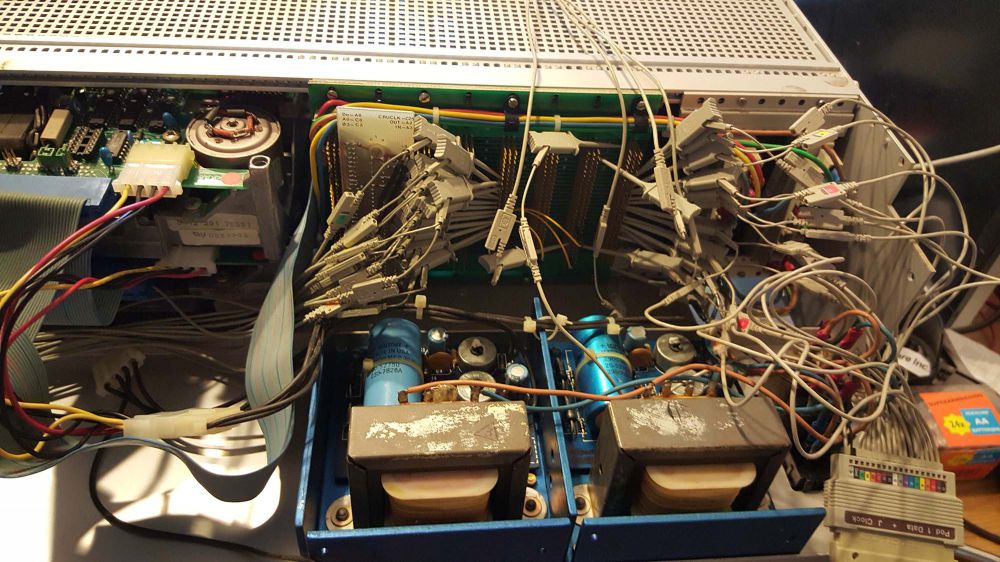

The EPROMs contain a bootloader for Eyring's PDOS (a multitasking disk operating system). After some repairs, the system is in working order, and runs PDOS. Eyring was a research institute in Provo, Utah, liaised with the Brigham Young University. It was this institute that spun off companies like Novell and WordPerfect.

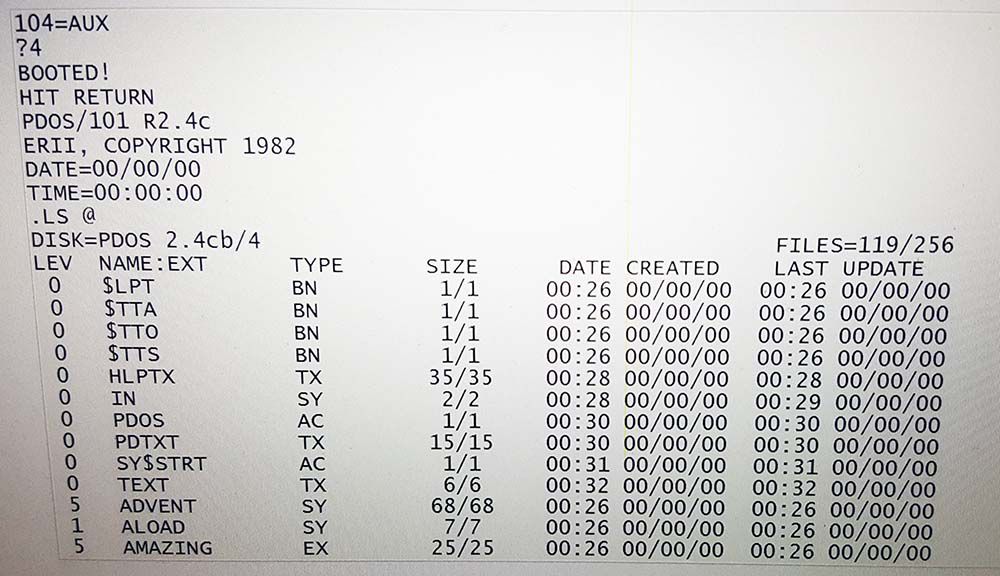

A sample PDOS session is given below:
SELECT FTI990-FDC? Y *PDOS BOOT R2.4 0-99=BOOT 100=MEMORY TEST 101=IAC 102=BOOT 103=MAKE BOOT 104=AUX ?0 BOOTED! HIT RETURN PDOS/101 R2.4c ERII, COPYRIGHT 1982 DATE=00/00/00 TIME=00:00:02 ..LS @ DISK=PDOSBACKUP/0 FILES=105/256 LEV NAME:EXT TYPE SIZE DATE CREATED LAST UPDATE 0 $LPT BN 1/1 00:26 00/00/00 00:26 00/00/00 0 $TTA BN 1/1 00:26 00/00/00 00:26 00/00/00 0 $TTO BN 1/1 00:26 00/00/00 00:26 00/00/00 0 $TTS BN 1/1 00:26 00/00/00 00:26 00/00/00 0 HLPTX TX 35/35 00:28 00/00/00 00:28 00/00/00 0 IN SY 2/2 00:28 00/00/00 00:29 00/00/00 0 PDOS AC 1/1 00:30 00/00/00 00:30 00/00/00 0 PDTXT TX 15/15 00:30 00/00/00 00:30 00/00/00 0 SY$STRT AC 1/1 00:31 00/00/00 00:31 00/00/00 0 TEXT TX 6/6 00:32 00/00/00 00:32 00/00/00 5 ADVENT SY 68/68 00:26 00/00/00 00:26 00/00/00 1 ALOAD SY 7/7 00:26 00/00/00 00:26 00/00/00 5 AMAZING EX 25/25 00:26 00/00/00 00:26 00/00/00 1 ASM SY 52/52 00:26 00/00/00 00:26 00/00/00 1 BACKUP SY 6/6 00:26 00/00/00 00:26 00/00/00 5 BEAST EX 39/39 00:26 00/00/00 00:27 00/00/00 1 BFIX SY 20/20 00:27 00/00/00 00:27 00/00/00 5 BOA EX 24/24 00:27 00/00/00 00:27 00/00/00 5 BULLS EX 16/16 00:27 00/00/00 00:27 00/00/00 1 BURN302 SY 21/21 00:27 00/00/00 00:27 00/00/00 1 BURNP SY 9/9 00:27 00/00/00 00:27 00/00/00 1 BXREF EX 41/41 00:27 00/00/00 00:27 00/00/00 1 CHATLE SY 7/7 00:27 00/00/00 00:27 00/00/00 5 CLOCK EX 17/17 00:27 00/00/00 00:27 00/00/00 1 COMP EX 19/19 00:27 00/00/00 00:27 00/00/00 5 CPOLY EX 40/40 00:27 00/00/00 00:27 00/00/00 1 DDMAP SY 9/9 00:27 00/00/00 00:27 00/00/00 1 DDUMP SY 7/7 00:27 00/00/00 00:27 00/00/00 1 DISCAT SY 10/10 00:27 00/00/00 00:27 00/00/00 1 DISCVER SY 6/6 00:27 00/00/00 00:27 00/00/00 1 DNAME SY 2/2 00:27 00/00/00 00:27 00/00/00 5 DRAG EX 17/17 00:27 00/00/00 00:27 00/00/00 3 DRGN SY 5/5 00:27 00/00/00 00:27 00/00/00 13 DUPE0 SY 4/4 00:27 00/00/00 00:28 00/00/00 1 EDIT SY 9/9 00:28 00/00/00 00:28 00/00/00 40 ER3314 SY 24/24 00:28 00/00/00 00:28 00/00/00 5 EVAL EX 21/21 00:28 00/00/00 00:28 00/00/00 1 FDUMP SY 3/3 00:28 00/00/00 00:28 00/00/00 1 FIGFORTH SY 36/36 00:28 00/00/00 00:28 00/00/00 5 FOOD EX 46/46 00:28 00/00/00 00:28 00/00/00 1 FREE SY 3/3 00:28 00/00/00 00:28 00/00/00 40 FRMT303 SY 4/4 00:28 00/00/00 00:28 00/00/00 40 FRMTW SY 5/5 00:28 00/00/00 00:28 00/00/00 1 FSAVE SY 3/3 00:28 00/00/00 00:28 00/00/00 1 GLOBAL SY 3/3 00:28 00/00/00 00:28 00/00/00 5 HANGMAN EX 19/19 00:28 00/00/00 00:28 00/00/00 5 HANOI EX 6/6 00:28 00/00/00 00:28 00/00/00 5 HPLOT EX 3/3 00:28 00/00/00 00:28 00/00/00 1 IMP SY 3/3 00:28 00/00/00 00:28 00/00/00 1 INIT SY 9/9 00:29 00/00/00 00:29 00/00/00 40 INIT307 SY 2/2 00:29 00/00/00 00:29 00/00/00 1 JED SY 31/31 00:29 00/00/00 00:29 00/00/00 1 JEDY SY 28/28 00:29 00/00/00 00:29 00/00/00 1 KILLM SY 1/1 00:29 00/00/00 00:29 00/00/00 1 LDIR SY 8/8 00:29 00/00/00 00:29 00/00/00 1 LEVEL SY 5/5 00:29 00/00/00 00:29 00/00/00 1 LIBGEN SY 3/3 00:29 00/00/00 00:29 00/00/00 1 LINK SY 29/29 00:29 00/00/00 00:29 00/00/00 1 LOAD SY 4/4 00:29 00/00/00 00:29 00/00/00 1 LOGO SY 9/9 00:29 00/00/00 00:29 00/00/00 3 LPT BN 1/1 00:29 00/00/00 00:29 00/00/00 1 MDUMP SY 3/3 00:29 00/00/00 00:29 00/00/00 1 MEMTEST SY 2/2 00:29 00/00/00 00:29 00/00/00 5 MERRY EX 4/4 00:29 00/00/00 00:29 00/00/00 1 MIAC SY 2/2 00:29 00/00/00 00:30 00/00/00 1 ORDIR SY 4/4 00:30 00/00/00 00:30 00/00/00 5 OTHELLO EX 39/39 00:30 00/00/00 00:30 00/00/00 1 PAUSE SY 1/1 00:30 00/00/00 00:30 00/00/00 1 PRINT EX 5/5 00:30 00/00/00 00:30 00/00/00 5 PUZZLE EX 18/18 00:30 00/00/00 00:30 00/00/00 4 R$MODA OB 29/29 00:30 00/00/00 00:30 00/00/00 4 R$MODB OB 68/68 00:30 00/00/00 00:30 00/00/00 4 R$MODB2 OB 66/66 00:30 00/00/00 00:30 00/00/00 4 R$MODC OB 5/5 00:30 00/00/00 00:30 00/00/00 4 R$MODF OB 10/10 00:30 00/00/00 00:30 00/00/00 4 R$MODF2 OB 8/8 00:30 00/00/00 00:31 00/00/00 4 R$MODT OB 9/9 00:31 00/00/00 00:31 00/00/00 4 R$MODT2 OB 8/8 00:31 00/00/00 00:31 00/00/00 1 RECOVER SY 10/10 00:31 00/00/00 00:31 00/00/00 1 RENUMB EX 38/38 00:31 00/00/00 00:31 00/00/00 5 ROBOT EX 20/20 00:31 00/00/00 00:31 00/00/00 1 SENDM SY 1/1 00:31 00/00/00 00:31 00/00/00 5 SEX EX 5/5 00:31 00/00/00 00:31 00/00/00 1 SHOW SY 7/7 00:31 00/00/00 00:31 00/00/00 5 SNOOPY EX 23/23 00:31 00/00/00 00:31 00/00/00 1 SORT SY 8/8 00:31 00/00/00 00:31 00/00/00 5 STARTREK EX 58/58 00:31 00/00/00 00:31 00/00/00 1 SYFILE SY 3/3 00:31 00/00/00 00:32 00/00/00 1 TERMINAL SY 7/7 00:32 00/00/00 00:32 00/00/00 1 TRANS SY 15/15 00:32 00/00/00 00:32 00/00/00 3 TTA BN 1/1 00:32 00/00/00 00:32 00/00/00 3 TTO BN 1/1 00:32 00/00/00 00:32 00/00/00 3 TTS BN 1/1 00:32 00/00/00 00:32 00/00/00 1 UPTIME EX 7/7 00:32 00/00/00 00:32 00/00/00 5 WORM EX 11/11 00:32 00/00/00 00:32 00/00/00 4 XBUG OB 44/44 00:32 00/00/00 00:32 00/00/00 1 XEROX EX 9/9 00:32 00/00/00 00:32 00/00/00 1 BURNFTI SY 21/21 09:31 04/14/85 09:31 04/14/85 1 FRMTFTI3 SY 10/10 09:32 04/14/85 09:32 04/14/85 1 LOADAMPL SY C 5/5 09:50 04/14/85 09:50 04/14/85 1 EMUTIBUG SY 5/5 09:51 04/14/85 09:51 04/14/85 0 JEDT 0/1 00:00 00/00/00 00:00 00/00/00 0 JEDB 0/1 00:00 00/00/00 00:00 00/00/00 1 THEO TX 1/1 00:01 00/00/00 00:11 00/00/00 1 NOP 14/17 00:59 05/11/34 00:24 00/00/00 ...
