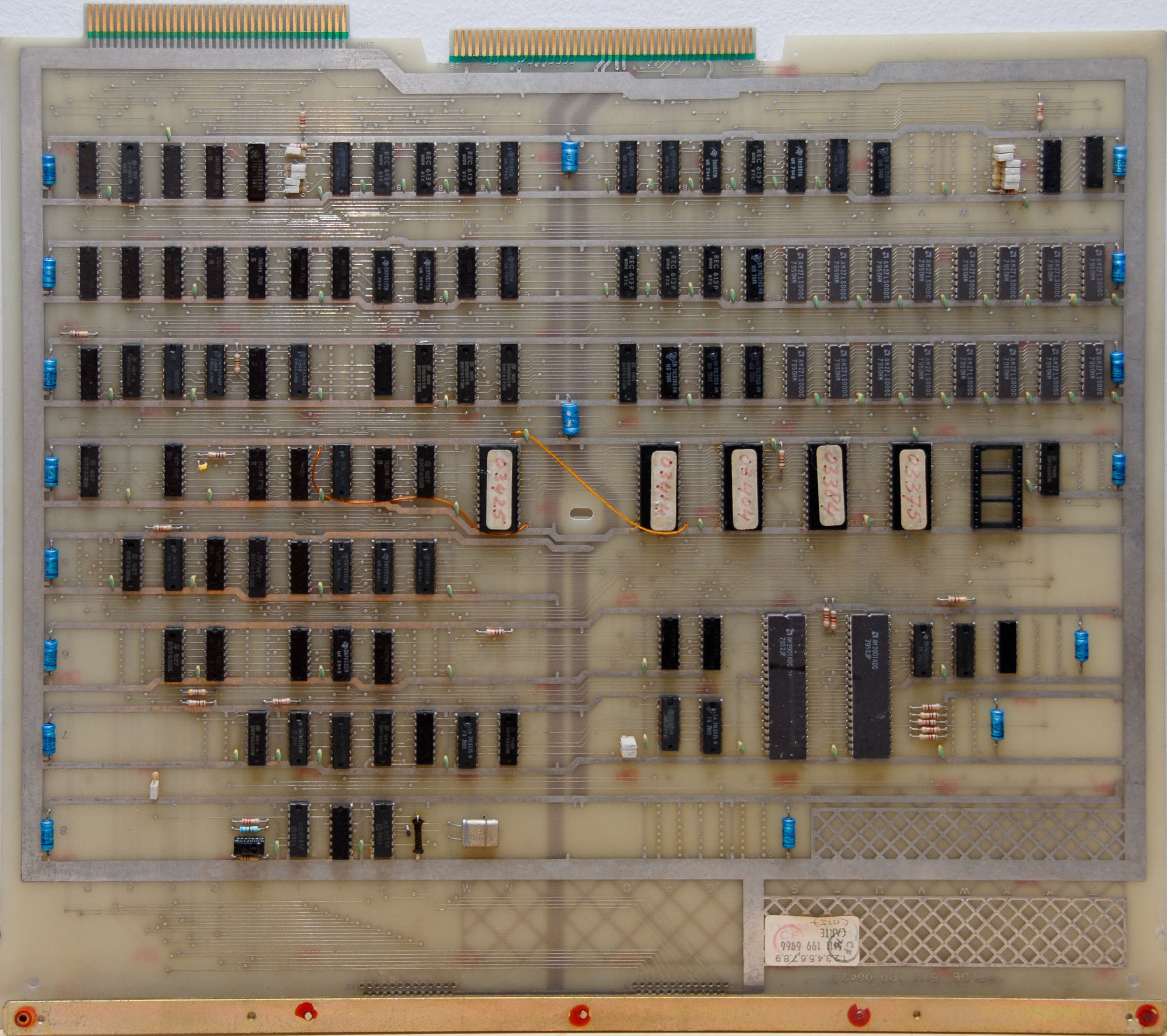

Control unit for 8" CDC floppy disk drives. Built around two Am2901ADC 4-bit bit slices. Uses 16 256-bit Am27LS00 RAM chips as buffer memory. Unknown chips: 6 x RTC REC613P.

Documentation

• P858/P859 REF Ch. 15
